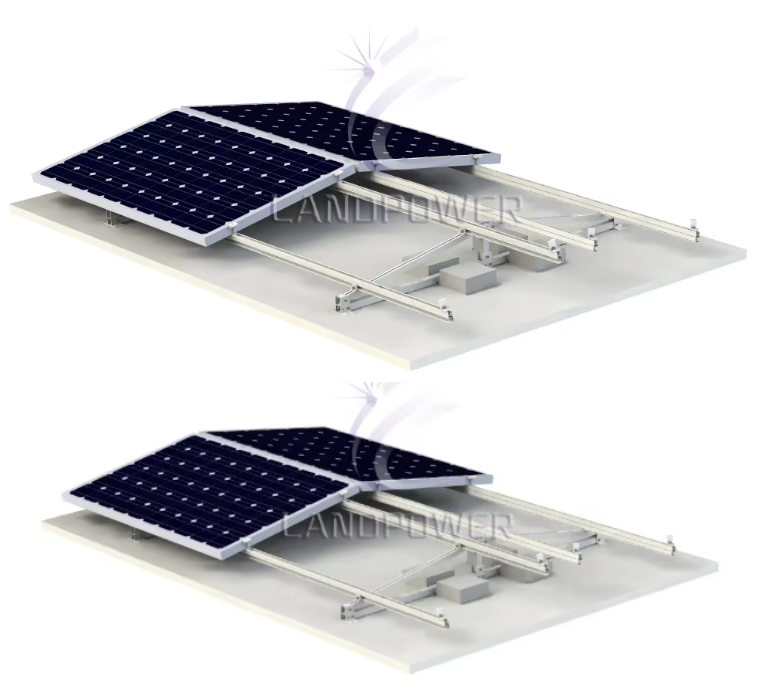

In the global wave of clean energy transformation, rooftop solar photovoltaic power generation has become one of the mainstream ways to utilize solar energy, especially for flat roofs widely used in commercial buildings, industrial plants and public facilities. The Aluminium Flat Roof Ballasted Solar Racking System, as a professional, efficient and non-destructive solar panel support solution, has been widely recognized in the rooftop solar installation market for its unique design advantages and reliable performance, providing a solid foundation for the stable operation of solar photovoltaic systems.

Core Design Concept

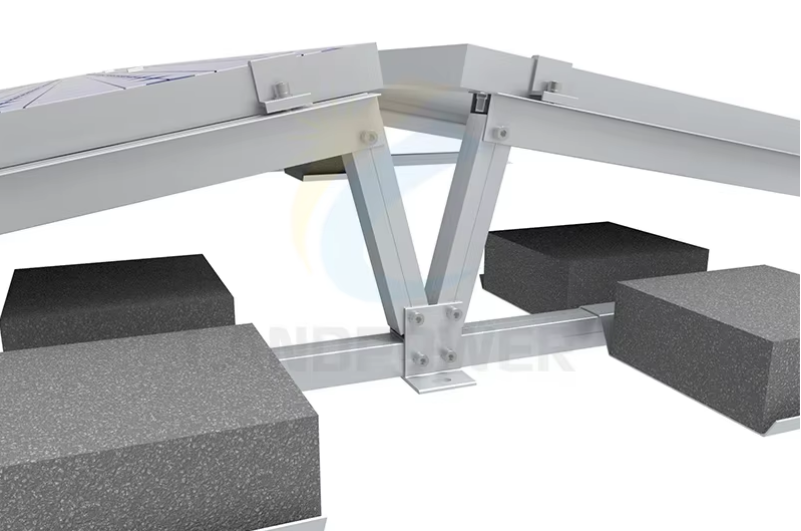

Unlike traditional solar mounting systems that require drilling and penetrating the roof surface for fixed installation, this aluminium flat roof ballasted solar racking system adopts a non-penetrating ballasted fixing design. It relies on counterweight blocks (usually concrete counterweights) placed on the support base to rely on gravity to fix the entire support structure firmly on the flat roof, completely avoiding damage to the roof's waterproof layer, insulation layer and structural layer.

This design fundamentally solves the hidden dangers of roof leakage, structural damage and other problems caused by traditional installation methods, and greatly reduces the later maintenance cost of the roof. At the same time, the system takes high-strength aluminium alloy as the main material, combined with a scientific mechanical structure design, to ensure that the support can still maintain excellent stability under extreme weather such as strong wind and heavy snow, and effectively resist wind uplift and snow load pressure.

Key Performance Features

1. Quick and Easy Installation: The system adopts pre-assembled and modular design, all components are precisely cut and produced in the factory, without on-site cutting and welding. Construction personnel can complete the assembly quickly according to the installation guidelines, which greatly shortens the construction period, reduces labor costs, and avoids the impact of long-term construction on the normal use of buildings.

2. Strong Adaptability: It is suitable for various types of flat roofs such as concrete flat roofs, color steel tile flat roofs and asphalt waterproof flat roofs, and can adapt to different roof load-bearing conditions and area sizes. Whether it is a small-scale residential rooftop photovoltaic project or a large-scale industrial and commercial rooftop distributed photovoltaic project, it can be customized and configured to meet diversified installation needs.

3. Stable Mechanical Performance: Through professional mechanical calculation and wind and snow load test, the system can withstand high wind speed (up to 60m/s) and snow load (up to 1.4kN/㎡), and the overall structure is stable and reliable. The rational layout of counterweight blocks ensures the overall center of gravity of the system is stable, and there is no risk of overturning and displacement.
