Landpower Landscape Flat Roof Solar Mounting is easy and fast ballasted flat roof structure for concrete roofs,bitumen roof and membrane roof,or other similar flat roofs. The Ballasted Flat Roof Mounting is design or solar panel panel installing inLandscape,Just few component it is easy for installation,and they are costeffective. It come only pre-assembled triangles,mid clamp,end clamp,connection tube,and ballasted plates. The triangle is flexible,by adding some parts,the angle will be adjustable,it can come with angle 5 degrees, 10 degrees,15 degrees,20 degrees,25 degrees,or designed to be adjustable.

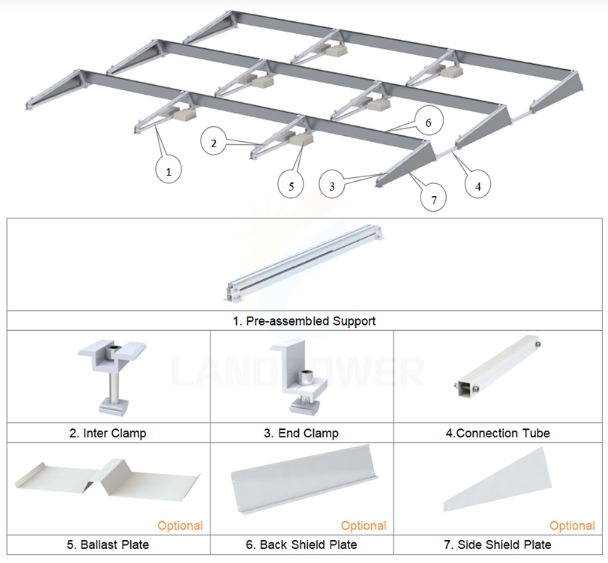

Main parts for the Landscape Flat Roof Mounting Structure

TECHNICAL INFORMATION

Install site: Flat Roof

Tilt Angle : Flushed with the roof (10-60 deg)

Material : Aluminum alloy Al6005-T5& Stainless steel 304(A2),EPDM

Color: Natural or Customized

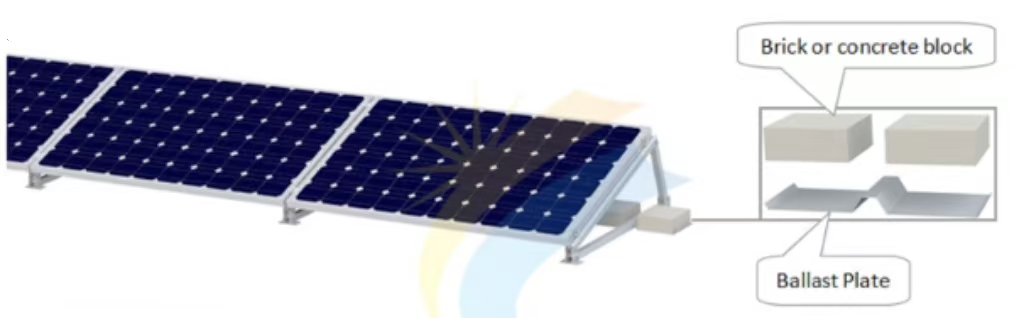

Foundation for the Ballasted Mounting Systems:

Ballast Plate

Customized Concrete Block

If you need this product,  please feel free to contact us. With 12 years experience,we can do very cometitive prices with high quality,  hope can work with you to cut your cost and reach mutual benefit. (sales7@landpowersolar.com)
