The Flat Roof Ballast Solar Mounting Structure is easy and simple mounting solutions for southfacing and east and west solar panel arrangements. Only few pre-assembled mounting components likefront/rear feet, mid/end clamp, EPDM mat, and ballast tray profiles. EPDM mat help separated thestructure from the roof, which not only protect the roof surface, but also provides better friction andcompensates for the height difference when the roof is uneven.

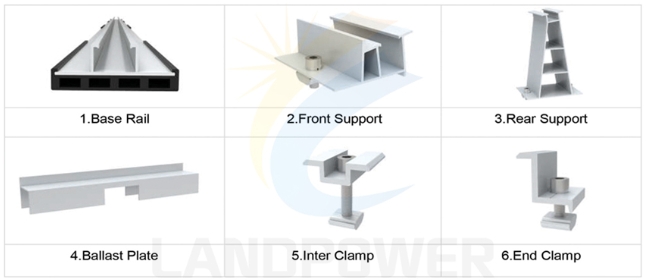

Main Components
It is fast and easy mounting system, mainly included below pre-assembled components: EPDM mat,Base Rail, front/rear legs, ballast plates, mid/end clamps.
Solar Panel Arrangement Options
The ballasted mounting systems can be in south facing and east west arangements, they are flexibleand easy to keep stock for different projects.

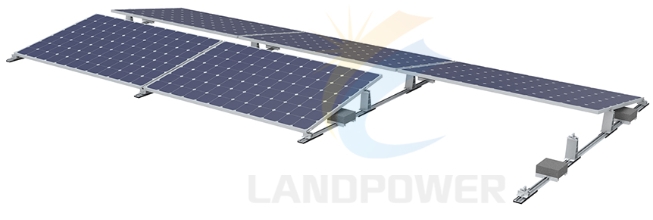

South Facing:

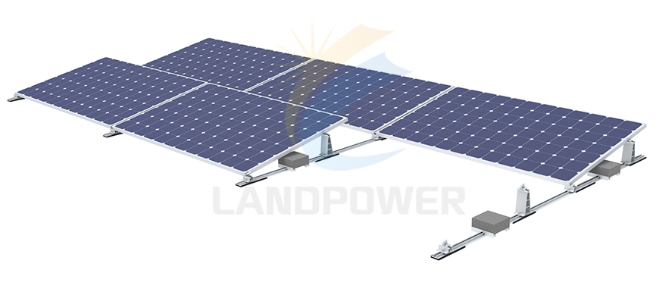

East West Arrangement:
TECHNICAL INFORMATION
Install Site: Flat Roof or Metal Roof
Tilt Angle: 10 degrees
Panel Orientation: South facing or East West
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
