Flat Roof Solar Mounting System(Popular)

In the past,we use the pre-assembled Triangle to install the flat roof solar mounting systems.After product upgrade,Now the new flat roof solar mounting system are very popular on the market.

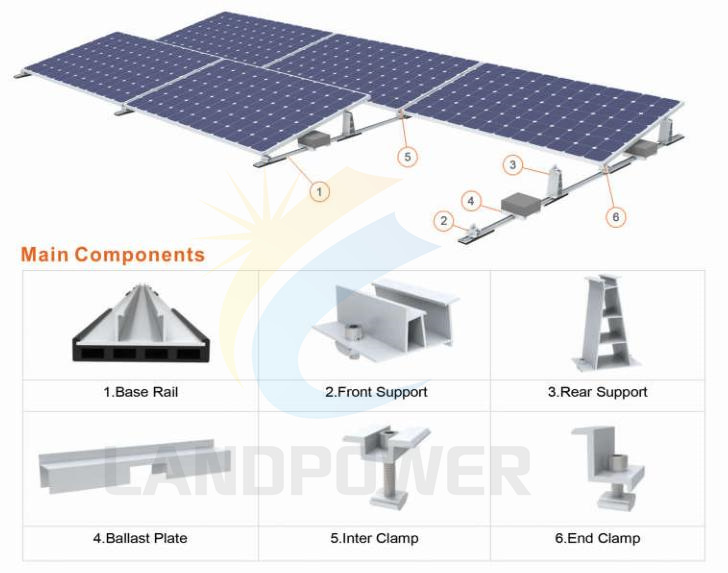

The base rail,front support and rear support instead of the pre-assembled triangle support.Less number of components requested and quick mounting.

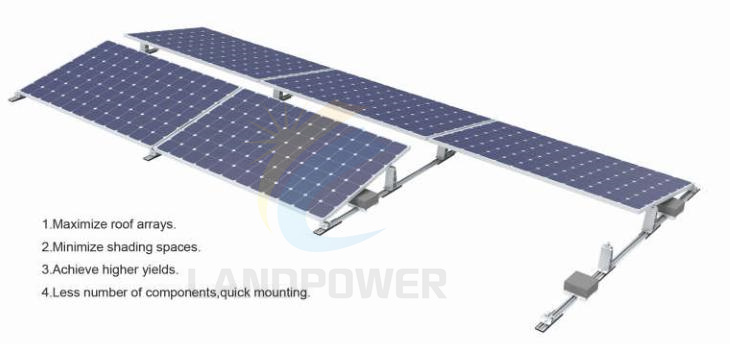

(Flat Roof Solar Mounting System-Landscape)

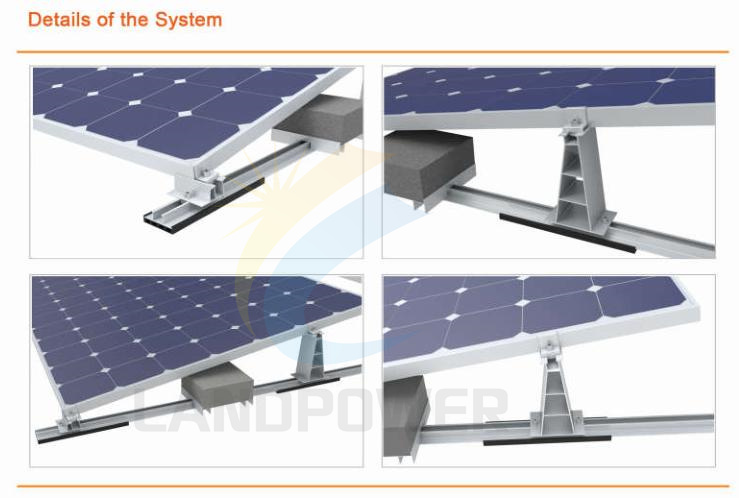

The mounting system are flexible and applicable to east and west orientations,just by using the same components,it is easy and fast mounting system for tilt 10 degrees installation.Conveniently to keep stock and distribution for landscape and east/west installation.

(East and west 10 degrees for flat roof)

Teachnical Information

Install Site:Flat roof or low profile roof

Module Arrangement:Landscape

Material:Anodized Aluminum&Stainless Steel 304

Max Wind Speed:60m/s

Snow Load:＜1.4KN/m2

Standard:AS/NZS1170,Euro code8,DIN 1055,JIS C8955-2011,IBC2006

Warranty:Ten years warranty and twenty yearsservice life
