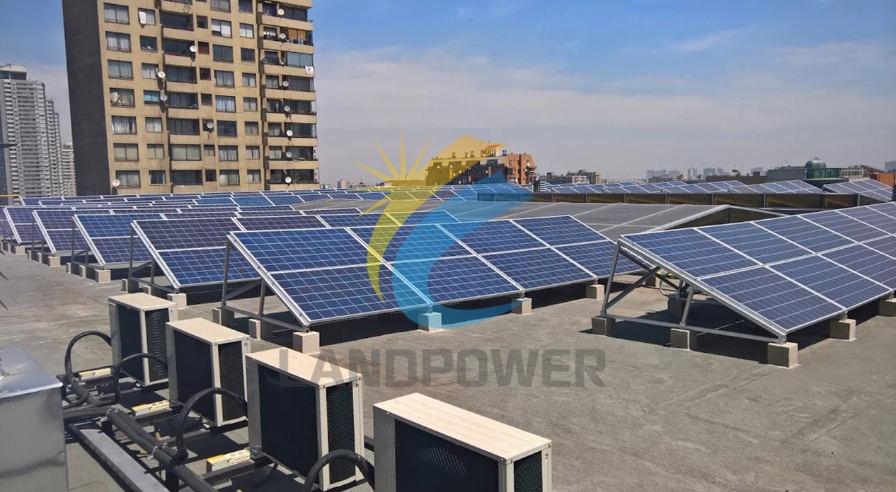

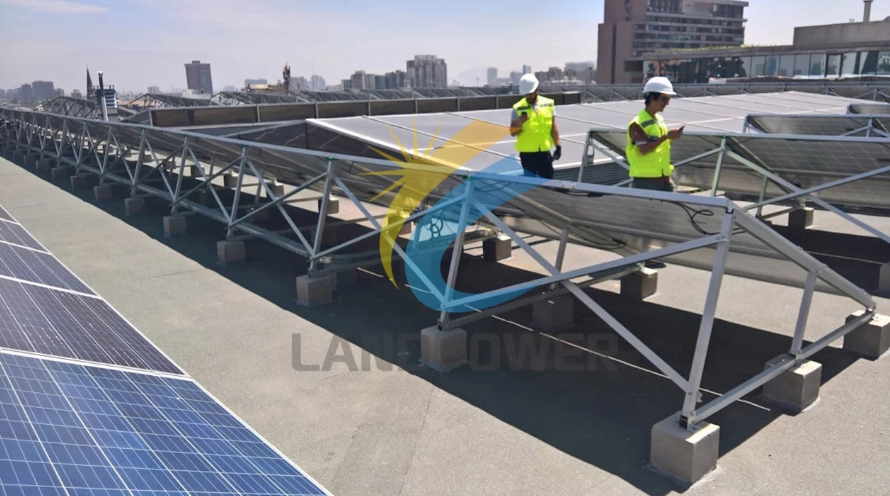

We have a very popular solar mounting system. First, let's present an engineering project about it in Chile.

This Solar Panel Flat Roof solar Mounting System is designed for two rows height solar panel installations on flat concrete roof. lt is easy flat roof mounting frame systems, come with triangle.mid clamp,end clamp and diagonal draw bar, no rail reguested, few concrete block needed, easy and simple to install on roof. lt is on competitive price per watt.

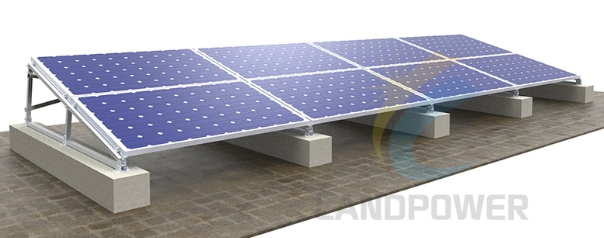

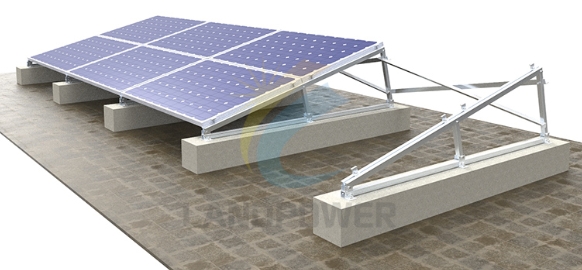

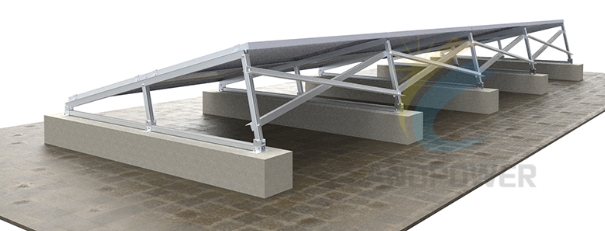

This flat roof mounting request no rail, come with diagonal draw bar on back of triangle,which make the whole mounting system stronger. It is easy mounting system,only few part like. triangle, end clamp,mid clamp and diagonal draw bar. Below image showing the structure.

Technical Information

Install Site: Flat Roof

Tilt Angle: 0-60 degree

Wind Speed:< 60m/s

Snow Load:<1.4KN/m²

Standard:AS/NZS 1170 and other international standard

Material: Aluminum 6005 T5 with A2 Stainless steel fasteners

If you need this solar mounting system, please feel free to contact us. (sales7@landpowersolar.com)
