Solar PV Mounting Roof Hook

2025-10-20

Landpower is a company with 12 years of OEM service experience. We have rich experience in Roof Mounting. This time, we are introducing our different styles of Roof hooks. To meet the diverse needs of customers, multiple Roof hooks have been designed to help you select the one that best suits your roof.

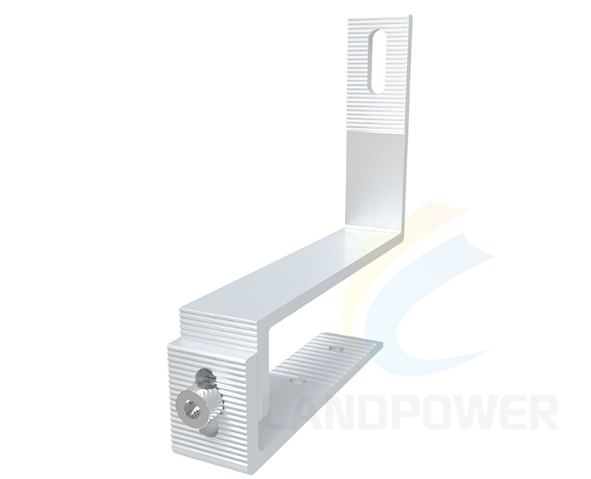

1. Aluminium Tile Roof Hook

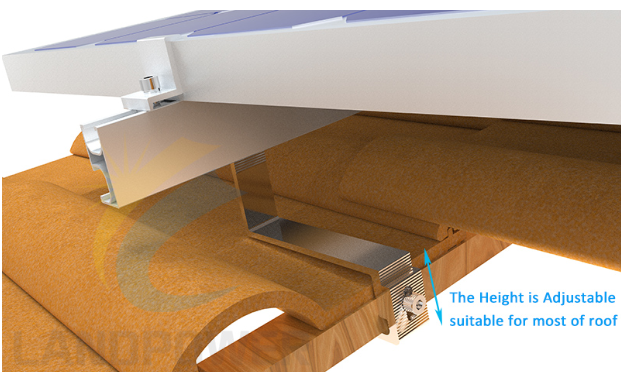

Aluminium Tile Roof Hook is designed for solar pv tile roof mounting installations.it is compatible to most of solar mounting rails, it can easily to fix on roof with and without screws, the tile roof aluminium hook is adjustable on its height to maximize compatibility on many roofs. The Aluminium tile roof hook is light weight but better load bearing capacity which minimize bending under load and the risk of tile cracking. The aluminum roof hook is adjustable on height,maximize its flexibility to fixed on tile roof.

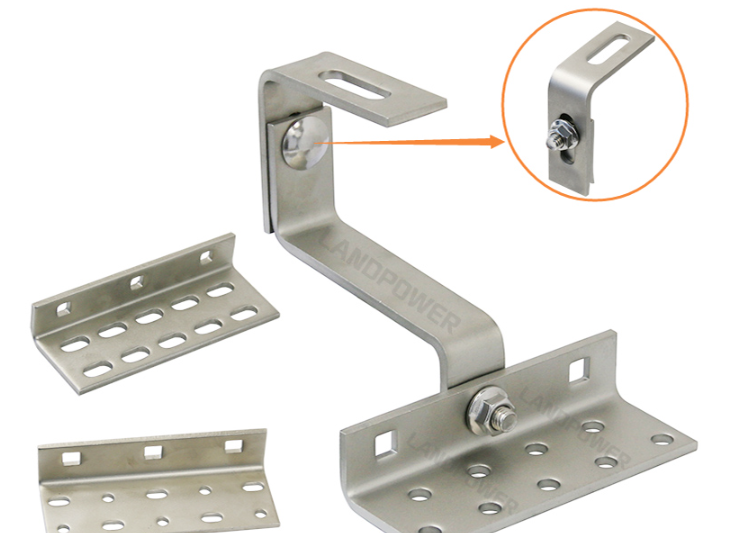

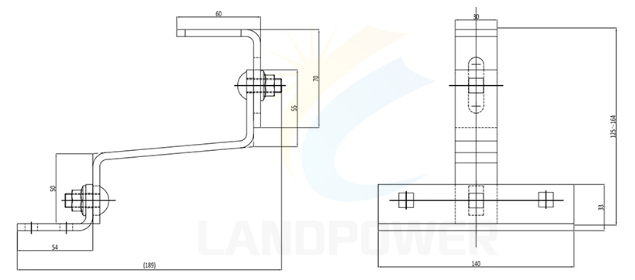

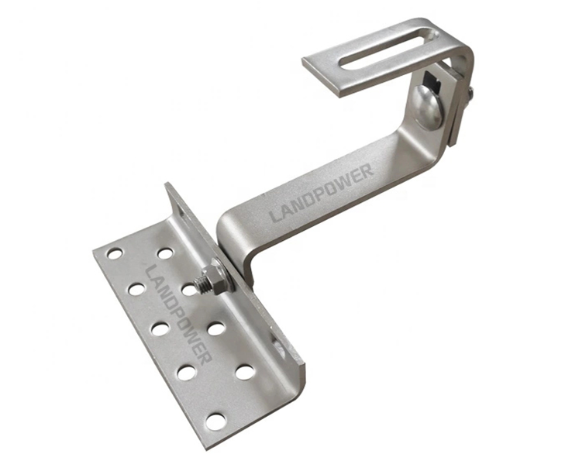

2. Pantile Roof Adjustable Hook

Pantile Adjustable Roof Hook is flexible in adjustment both in height and width, two individual adjustable part in height and one in width,which make them work in various pantile roof. lt is also designed to compatible with different brand mounting, it mean you can order individually. We offer different fixing plates for Ajustable Roof Hook to suit different pantile.




Technical Information

Application: Tile Roof

Material: Stainless Steel 304/ 1.4301

Surface Settlement: Sandblasted

Wind Load: Up to 60 m/s

Snow Load: 1.4 KN/M2

Fabrication:Customized Available



If you need such products, please feel free to contact us at any time.
