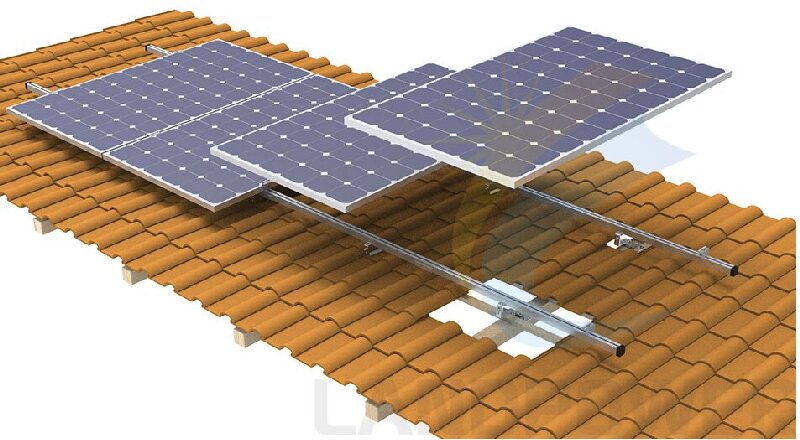

Tile Roof Solar Mounting System

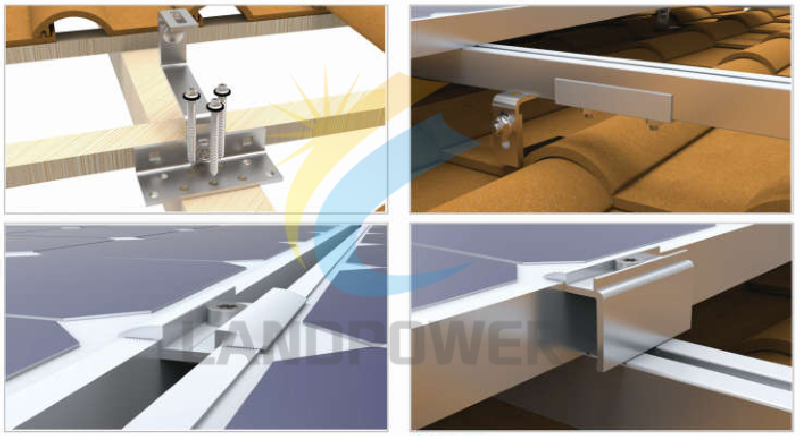

How to install a solar mounting system on a tile roof?

The click-in nut design make the system are easy and fast for installation.

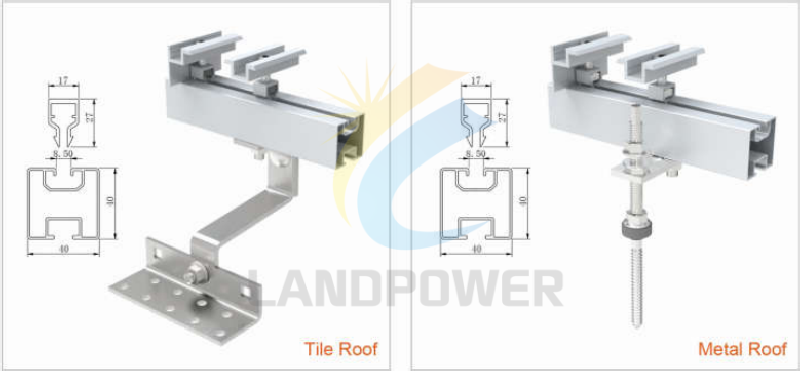

●40*40 rail enhance the strength of structure systems.

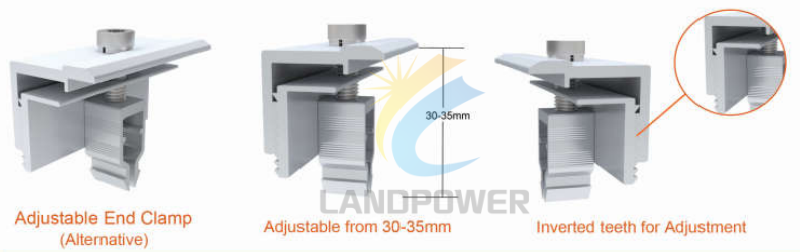

●With alternative adjustable end clamp,make the system universal for 30-35mm panels.It’s conveniently to keep stock and distribution.

Technical information

●Tilt Angle:0-15°

●Wind Load:60m/s

●Snow Load:1.4KN/㎡

●Panel Layout:Portrait

●Material:AL6005-T5&SUS304

●Warranty:10 years

●Service life:20 years

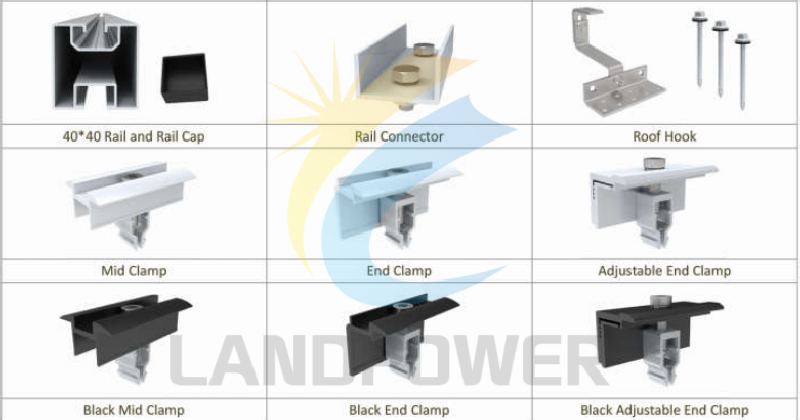

Parts

The solar mounting system is also widely works with trapezoidal roof sheet,corrugated roof sheet and other similar roof profiles.It’s very popular on the market.
