Trapezoidal Roof Multi Rail Solar Mounting Systems

Trapezoidal Roof Multi Rail Solar Mounting Systems is designed for trapezoidal metal roof installation, it is short rail or comes with various lengths both for landscape and portrait installation.
  • Brand:

    Landpower
  • Item No.:

    LP-MR-01
  • Product origin:

    Xiamen China
  • Color:

    ilver, Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

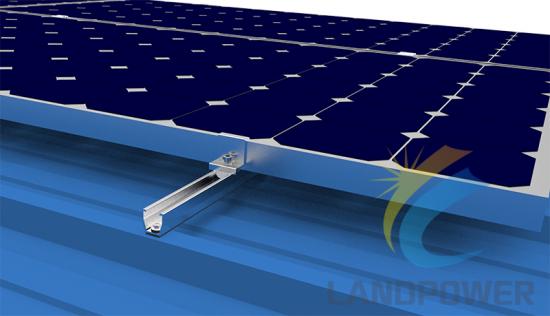

Trapezoidal Roof Multi Rail Solar Mounting Systems is designed for trapezoidal metal roof installation, it is short rail or comes with various lengths both for landscape and portrait installation. It just come with mid clamp,end clamp, and multi rail,it is simple and cost-effective trapezoidal roof mounting solutions.


TECHNICAL INFORMATION

Install site :Trapezoidal Metal Roof

Tilt Angle :Flushed with the roof (10~60 deg)

Building Height:Up to 20 m

Max Wind Speed:<60m/s

Snow Load:<1.4KN/m2

Standard :AS/NZS 1170 and other international Standard

Material :High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty:12 years warranty and twenty- year service life

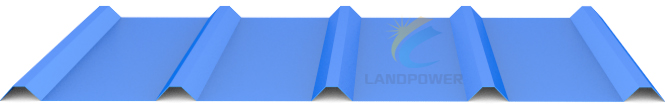

Suitable for below tapezoidal roof :


Trapezoidal Roof Sheet Mounting

          Trapezoidal Roof Solar Mounting



Muti Rail Installatin Demo:


Trapezoidal Roof Mounting systems

Multi Rail Solar Mounting

K2 Multi Rail Solar Mounting
Multi Rail Trapezoidal Roof Mounting






We design various roof attachment for trapezoidal roof,please contact us for your specific roof infomation,we do customized solutions for specific projects.
