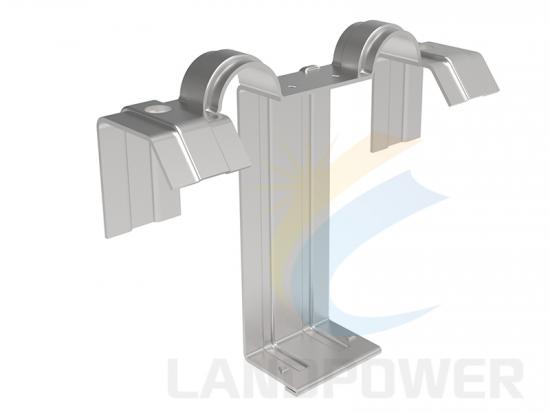

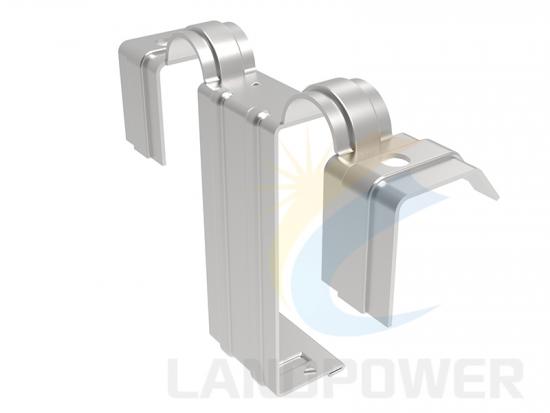

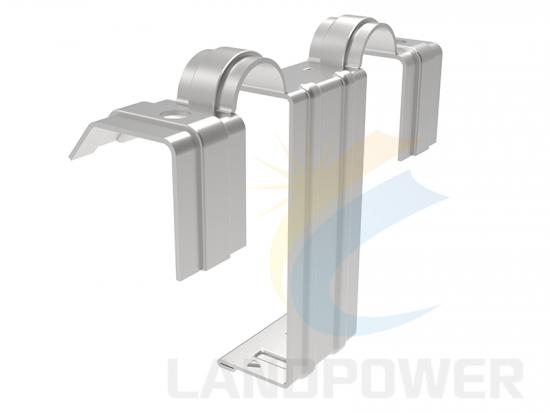

Stainless Steel Solar Panel Water Drain Clip

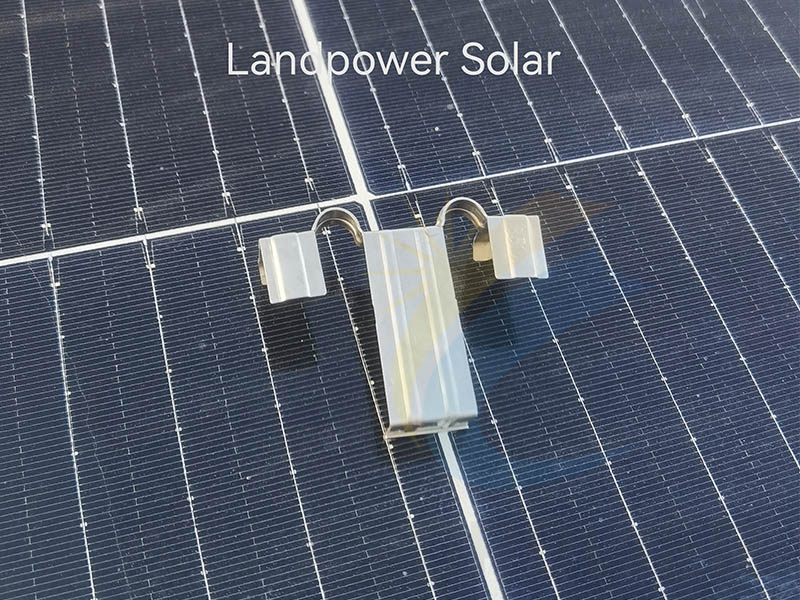

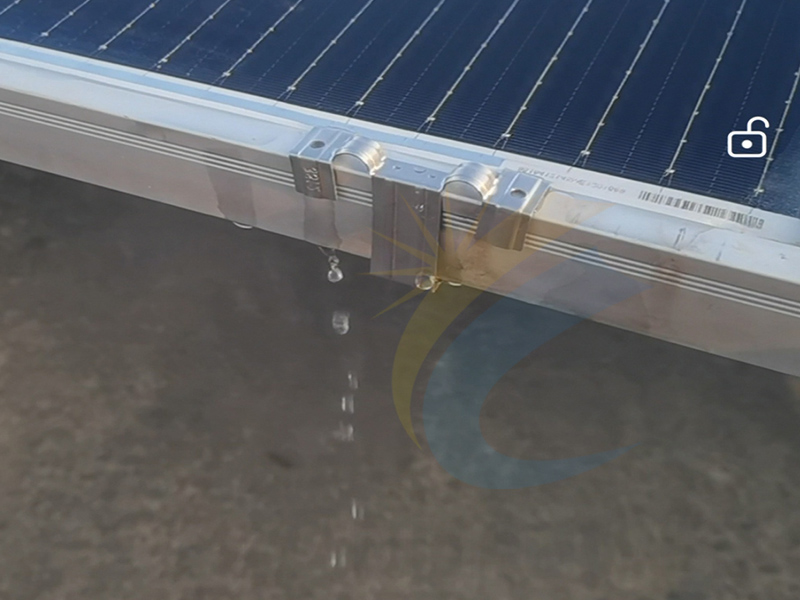

The Stainless Steel Solar Panel Water Drain Clip is used to drain the water and dirt off the panels. It is easy to clamp the clip on the aluminum frame of solar panel, and the water drainage clip can guide the water with dirt effectively drain off the panel. This way will great reduce the mud belts over solar panel surface. So, this will help to enhances solar panel efficiency and reduce the time to wash panel.

TECHNICAL INFORMATION

Install site: Clip on Aluminum Frame of Solar Panel

Function: Drain the water, dirt off the solar panel

Wind Load: Up to 60m/s

Module Type: Framed

Suitable Panel:30mm,32mm,35mm

Material: Stainless Steel 304

Standard: En 1090,AS/NZS 1170,Din 1055,IBC 2006 and other Internation Standard

Warranty: 12 years warranty and twenty-year service life.

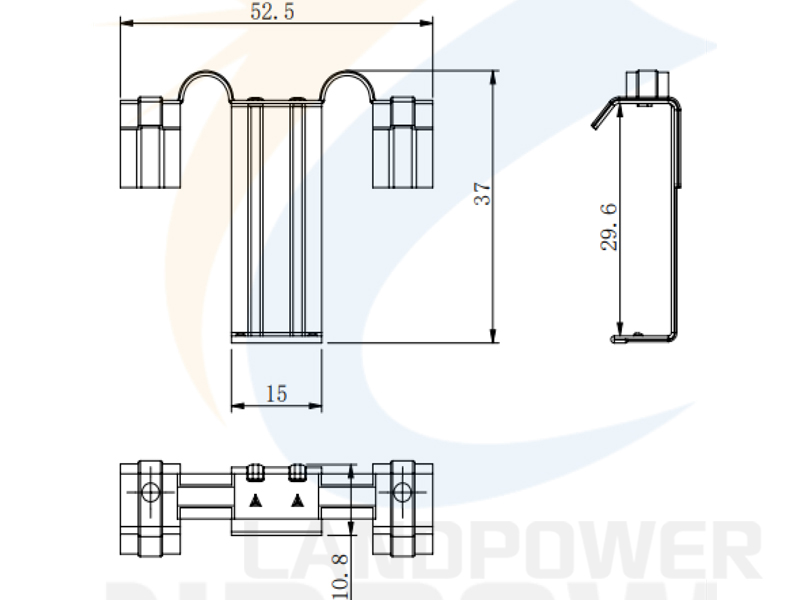

There frequently used 30mm and 35mm clips, the dimension as below:

                                                                                                 （for 30mm thickness Solar Panel）

                                                                                               （for 35mm thickness Solar Panel）

Please see the demonstration video as below:

The drainage clip is easy and effective way to drain the dust and water off the panel, it also quick and easy to clamp on the frame of panel. Landpower supply ABS and Stainless Steel Water Drainer for various of solar panel, feel free to contact us for more details.
