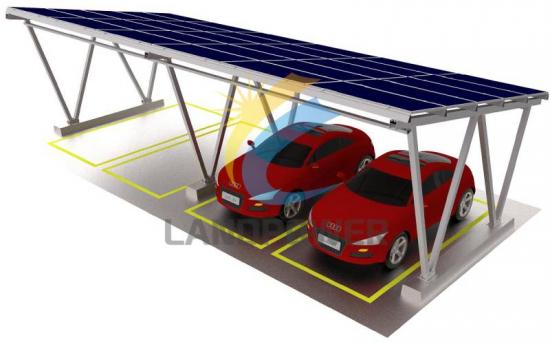

Landpower Aluminium Solar Carport Structures is designed for solar panel installation on parking areas,both for commercial and residential installation.
Brand:
LandpowerItem No.:
LP-CP-01Payment:
TT/LCProduct origin:
Xiamen ChinaColor:
Silver, Black or CustomizedShipping port:
Xiamen ChinaLead Time:
7-15 days
Landpower Aluminium Solar Carport Structures is designed for solar panel installation on parking areas,both for commercial and residential installation.The structures is made of high grade aluminum with anodized finishes which makes it super performance on corrosion resistance.They are come with pre-assembled,no on-site assembled requested,therefore, it is easy to install. In the meantime,It can be designed and engineered on each individual project,to ensure each project safe and cost-effective.
Features:
1.Cost-effective on cost
2.Fast Installation
3.Corrosion-Resistant
4.Multiple-Foundation Options
5.Material-Recyclable
Technical Information:
Installation Site:Open Field
Solar Orientation:Landscape or Portrait
Tilt Angle:0-45°
Structure Material:Anodized Aluminum
Fasten Material:SUS 304 A2-70
Finishing:Anodizing
Max Wind Load:46 m/s
International Standard:JIS C8955 -2017,AS/NZS 1170,Euro Code 8,DIN 1055,IBC 2006,GB 50009-2012.
Installation of aluminium carport structure:
Systems Overview:
Main Component(①-⑧):

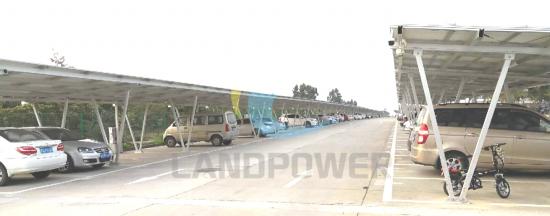

Projects of Aluminium Carport Structure:
