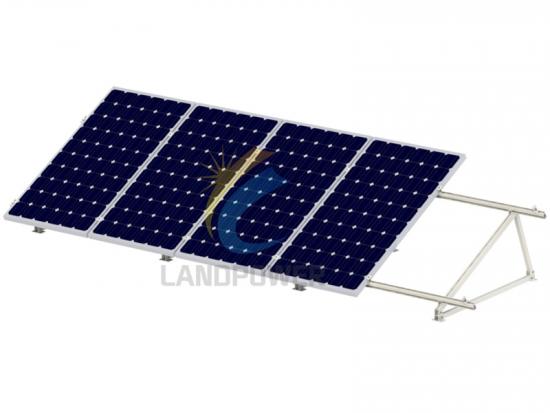

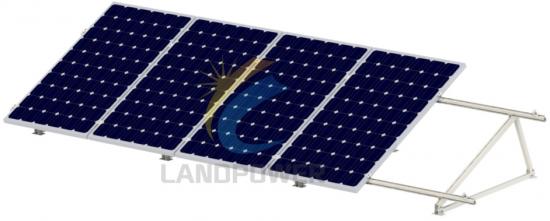

Flat Roof Solar Mounting Systems-Portrait

Portrait Flat Roof Solar Mounting System is design for portrait installation on flat roof.It comes with rail,end clamp,mid clamp and pre-assembled triangle supports,very convenient to install.
  • Brand:

    Landpower
  • Item No.:

    LP-FR-01
  • Product origin:

    Xiamen China
  • Color:

    Silver, Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

Portrait Flat Roof Solar Mounting System is design for portrait installation on flat roof. It comes with rail,end clamp,mid clamp and pre-assembled triangle supports,very convenient to install. It can be angle adjustable by adding some parts to triangle, anti-slide design, compatible with uneven roof surface and muti foundations optional make it more flexible in flat roof installation.


TECHNICAL INFORMATION

Install site Trapezoidal Metal Roof

Tilt Angle Flushed with the roof 10~60 deg

Building HeightUp to 20 m

Max Wind Speed<60m/s

Snow Load<1.4KN/m2

Standard AS/NZS 1170 and other international Standard

Material High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty12 years warranty and twenty- year service life

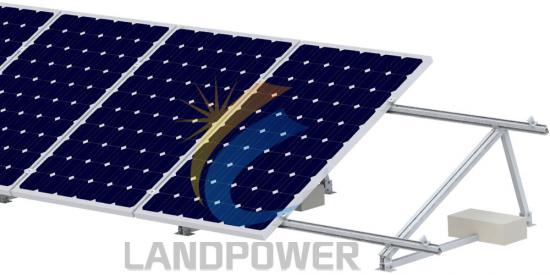

Portrait Flat Roof Mounting Main Components:


      flat roof solar mounting

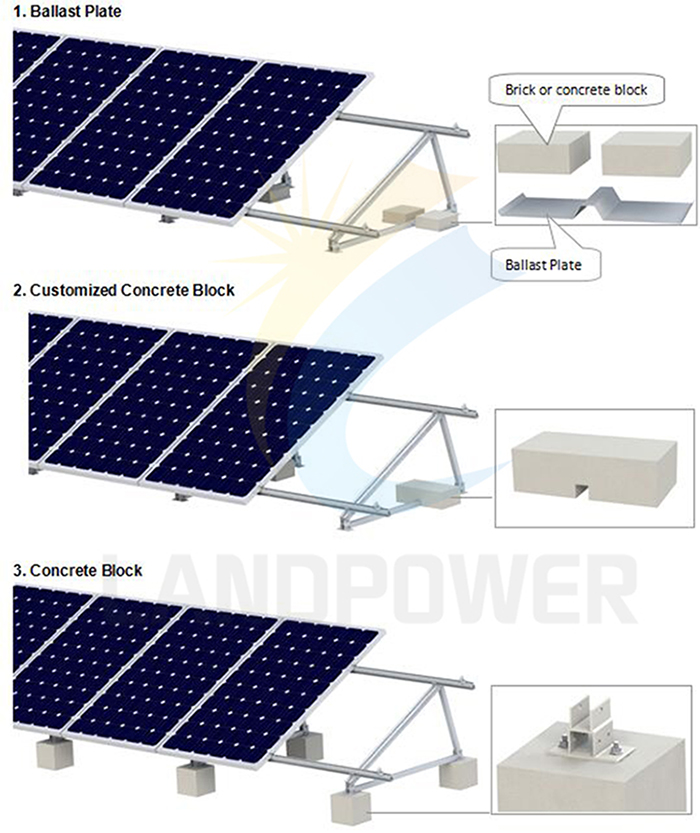

Various Foundation Options:


flat roof solar mounting systems


Landpower Flat Roof Mounting Benefits:


  • Highly Pre-assembled  Most
         Most of components are highly pre-assembled,less work requested on site,save time and labour cost.
  • High Flexibility

        The tilt angle of tripod can be adjustable or the fixed angle can be customized.Compatile for most of  condtitions.

  • Smart and Save

        Less component requested for most of installations and engineered for adverse conditions.



Flat Roof Solar Mounting Installation Video Demo.:


Landpower design various racking for different flat roof installation, like landscape ballasted flat roof mounting, adjustable angle flat roof, east and west flat roof etc, pleased feel free to email us your project details.
