Aluminium Ground Mountin System-Portrait
Portrait Aluminium Ground Mounting is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw
Brand:
LandpowerItem No.:
LP-GM-03Payment:
TT/LCProduct origin:
ChinaColor:
Silver Black or CustomizedShipping port:
Xiamen ChinaLead Time:
7-15 daysLandpower Pile Driven Ground Mounting is a economic and fast-way installation solutions.By using pile driving machine hydraulically push galvanized steel posts into the ground to the required depth without using poured concrete to support a steel racking systems,it just takes some seconds to finish a piling pole.The racking is strong and cost-effective which adaptable to most terrains.
Technical Information
Installation Site: Open field
Module Type: Framed or Frame-less
Module Arrangement: Portrait or Landscape
Tilt Angle: Design on Request
Foundation: Ground Screw or Concrete
Wind/Snow Load: Design on Request
Rail Material: Anodized Aluminum
Post Material: Hot-dip galvanized steel
Soil Condition: Non-sandy
Design Standard: AS/NZS 1170,DIN 1055, IBC 2006
Warranty: 10 years

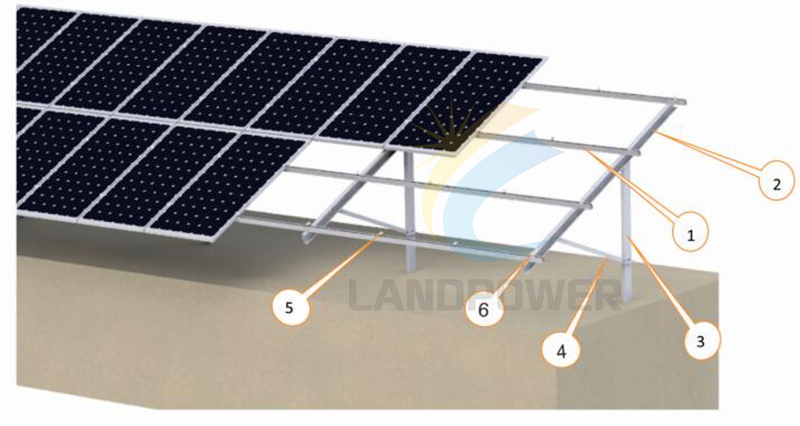

Pile Driven Main Components

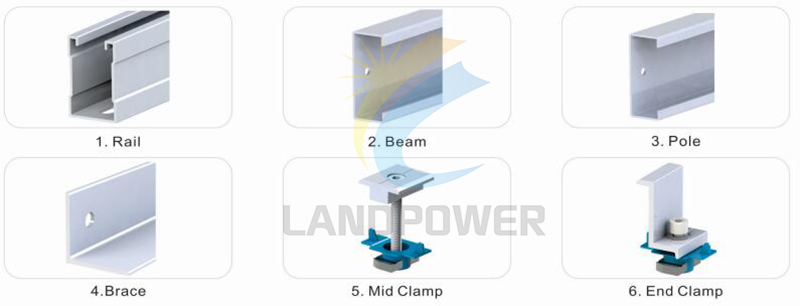

Main Components

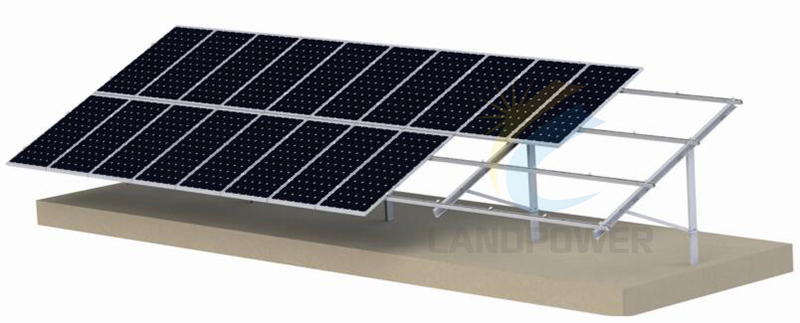

Front View

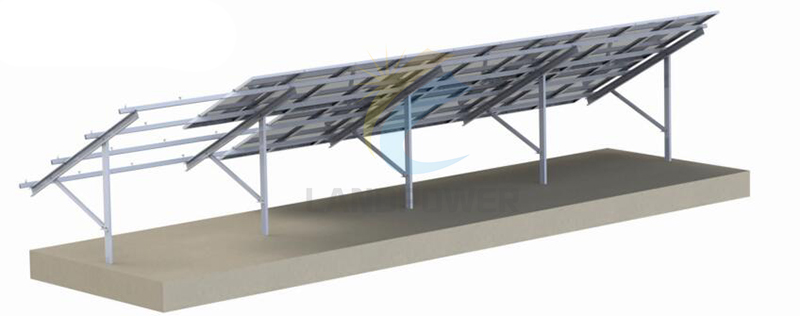

Back View

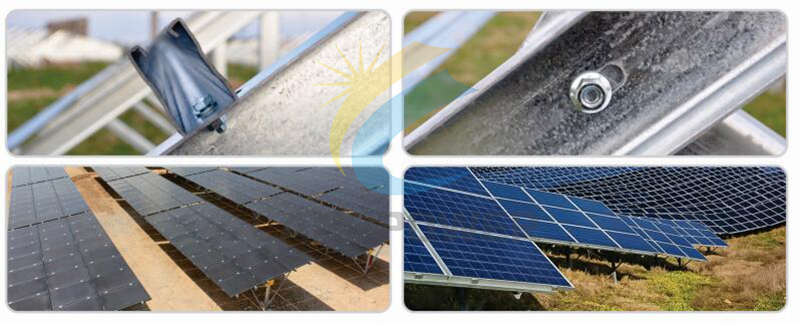

Pile Driven Poject
We engineer and design various ground mounting solutions,please feel free to email us your projects details,we will design specific solutions for you.
