Aluminium Ground Mountin System-Portrait

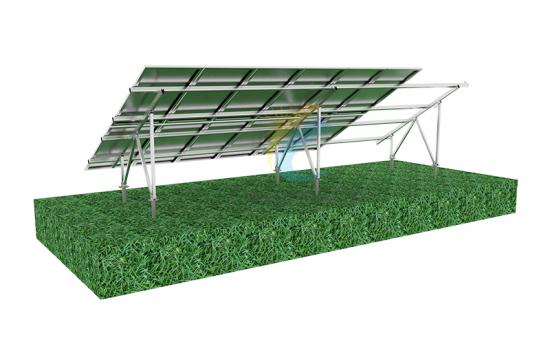

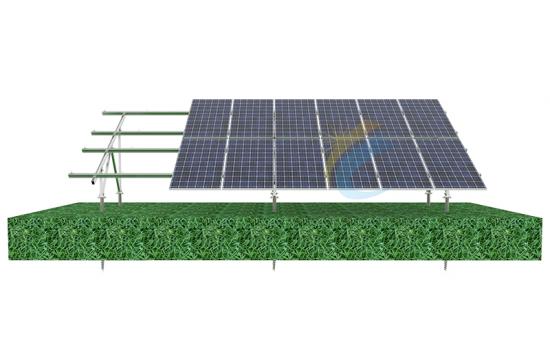

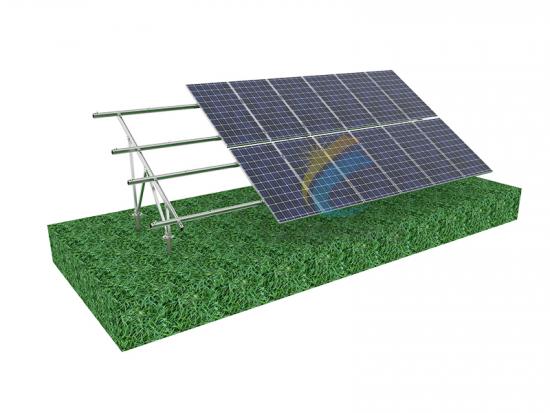

Portrait Aluminium Ground Mounting is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw

  • Brand:

    Landpower
  • Item No.:

    LP-GM-01
  • Payment:

    TT/LC
  • Product origin:

    China
  • Color:

    Silver Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

Landpower Aluminium Ground Mounting System is equipped with components which made of aluminum for mounting on concrete strip foundations or ground screw. This system highlight quick installation, delivered by preassembled parts, it highly minimized the installation processes. It provides a strong and sturdy mounting structure that is suitable for use in high wind and snow load environments.


Technical Information

Installation Site:  Open field

Module Type:  Framed or Frame-less

Module Arrangement:  Portrait or Landscape

Tilt Angle: Design on Request

Foundation: Ground Screw or Concrete

Wind/Snow Load: Design on Request

Main Material:   100% Anodized Aluminum
Fastener Material:   Stainless Steel

Design Standard: AS/NZS 1170,DIN 1055, IBC 2006

Warranty: 10 years

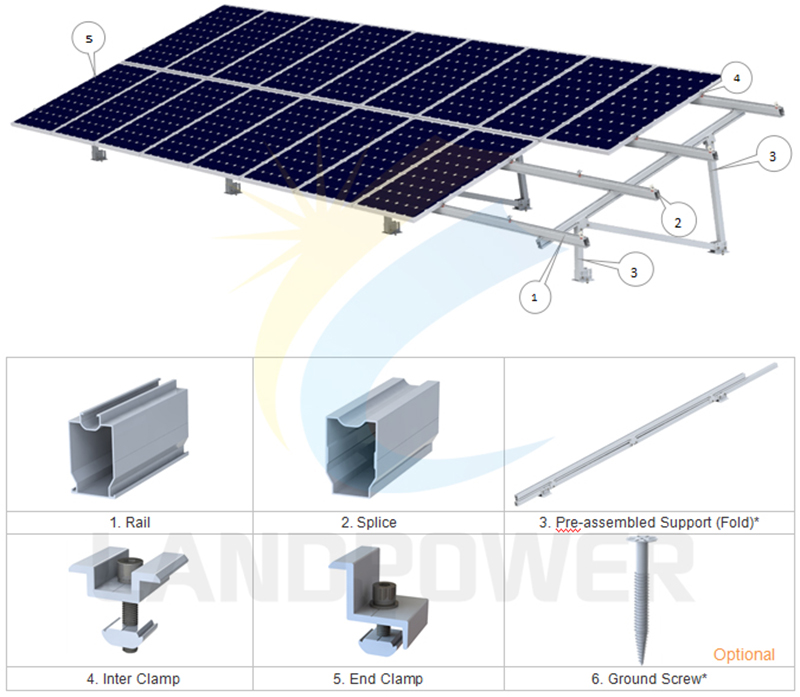

Portrait Ground Mounting Main Components

solar ground mounting

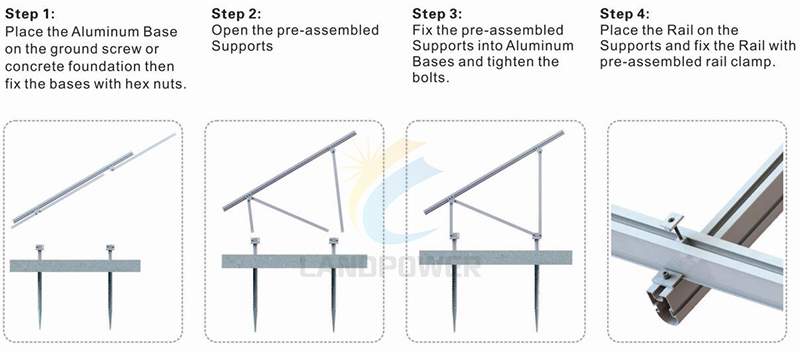

Fast Installation

Just unfold the pre-assembled Triangle and fix with ground screw or concrete foundation,it just takes 4 steps to get the installation completed.


solar pv ground mounting

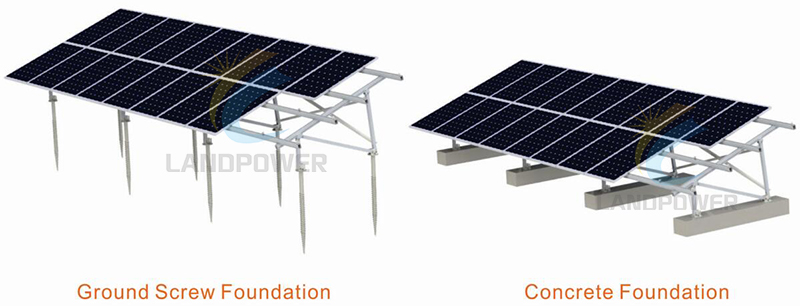

Foundation Option

aluminum solar mounting systems

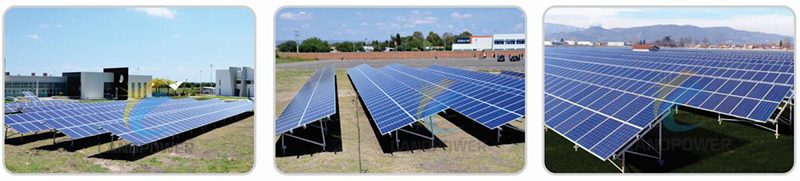

Solar Ground Mounting Project


solar ground mounting


We engineer and design various ground solar mounting solutions,please feel free to email us your projects details,we will design specific solutions for you.
