Adjustable Tilt Solar Roof Mounting Systems

Adjustable Tile Solar Roof Mounting is simple roof mounting system with competitive cost,allows tilt angle ajustable from 10-60 degree,it suitable for corrugated roof, trapezoidal roof and concrete flat roof.
  • Item No.:

    LP-TR-02
  • Payment:

    TT/LC
  • Product origin:

    Xiamen China
  • Color:

    Silver Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

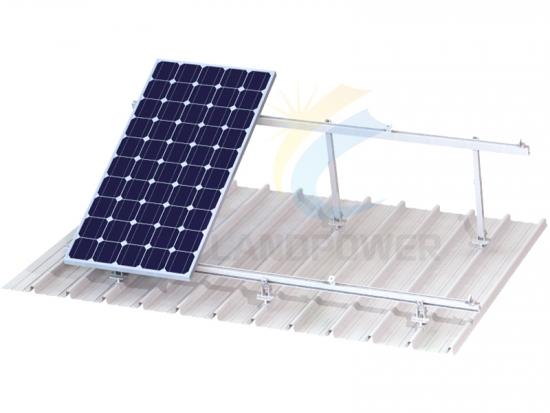

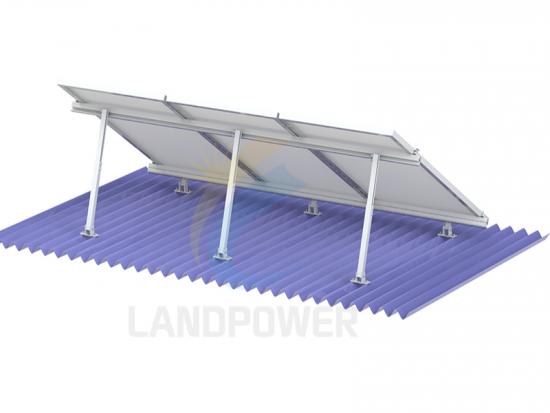

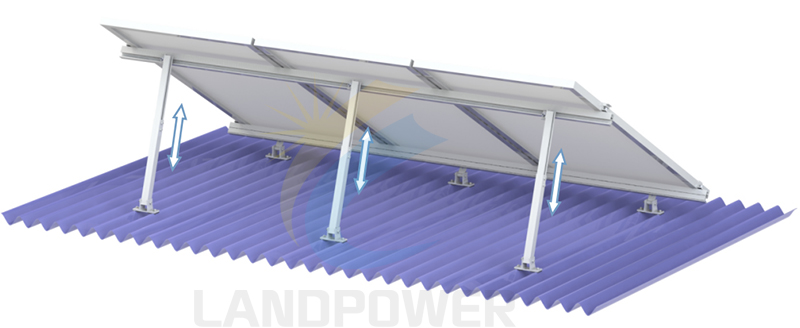

Tilt Adjustable Roof Solar Mounting Mounting is designed to adjust tilt angle according to different seasons, the angle adjustable ranges are 10-15 degree, and 15-30 degree and 30-60 degree. It is a simple tilt adjustable mounting systems,suitable for corrugated roof, trapezoidal roof and concrete flat roof. Few pre-assembled parts,easy to be installed on roof, it is cost-effective mounting solutions.

angle tilt roof mount

Technical Information


Installation Site: Trapezoidal Roof, Corrugated Roof and Flat Roof.

Tilt Angle: 10-15,15-30,30-60 degree

Building Height: Up to 20m

Max Wind Load: 60m/s

Snow Load:1.4kn/m2

Standard: AS/NZS 1170 and other international standard

Material: Aluminum AL 6005 T5 & stainless steel 304

Warranty: 12 Warranty and 25 year lifespan


System Overview


All components of the system are listed below. The version and quantities of the parts can vary, depending of Type of roof,type of module,  no. of module,and installation site specifics.




angle adjustable roof mounting

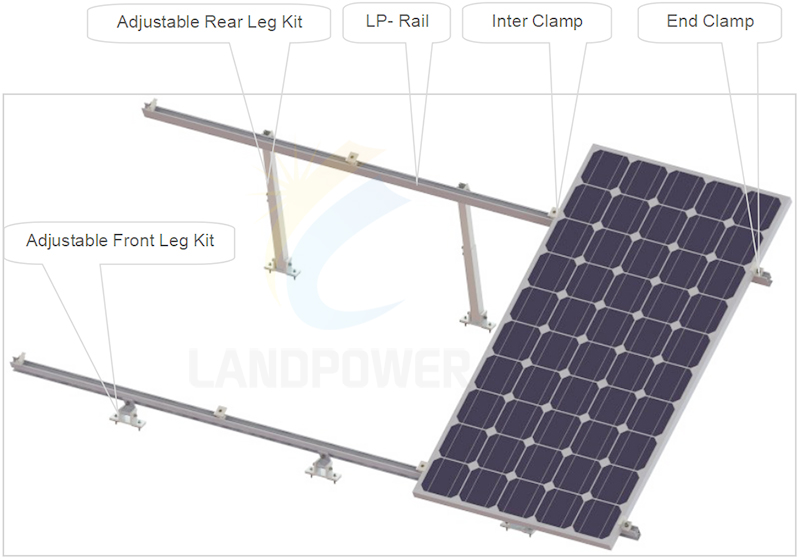

 Main Components:


LP standard rail

ü length can be customized

ü 6005-T5 extruded aluminum

ü 2560,3400mm for 808-826mm module

ü 3200,4200mm for 990-1020mm module

                        rail

Rail Splice Kit

ü Fastened with a 6mm Allen key

                       splice

Mid (Inter) Clamp Kit for Framed Modules

üFit between two panels

üFastened with a 6mm Allen key

üStandard pre-assembly for the usual panels with

thickness 30~35, 35~40, 45~50, 57~60mm

                            mid clamp

End Clamp Kit for Framed Modules

üHold the edge of each end panels

üFastened with a 6mm Allen key

ü Standard pre-assembly for the usual panels with thickness 30, 35, 40, 46, 50, 57mm

                                end clamp

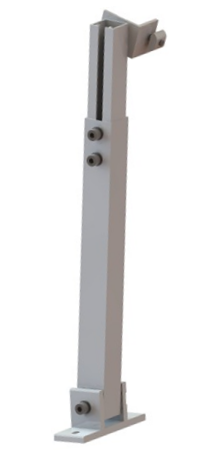

 Adjustable Front Leg

üPre-assembly

üInclude 2pcs st6.3x80 wood screws



                             front leg

Adjustable Rear Leg 10/15

üPre-assembly

üAdjust angle from 10 deg to 15

üInclude 2pcs st6.3x80 wood screws

                      rear leg

Adjustable Rear Leg 15/30

üPre-assembly

ü Adjust angle from 15 deg to 30

ü Include 2pcs st6.3x80 wood screws

Adjustable Rear Leg 30/60

üPre-assembly

üAdjust angle from 30 deg to 60

üInclude 2pcs st6.3x80 wood screws


This Angle adustable roof mounting is widely use on both residential and commercial corrugated metal roof, corrugated roof, trapezoidal metal roof,some time need to use with roof attachments, it is flexible on installtion. please click here for one of installatons: Angle Adustable Foof Mounting
