Flat Roof Solar Mounting Systems-Portrait
Portrait Flat Roof Solar Mounting System is design for portrait installation on flat roof.It comes with rail,end clamp,mid clamp and pre-assembled triangle supports,very convenient to install.
This Solar Panel Flat Roof Solar Mounting System is designed for two rows height solar panel installations on flat concrete roof. It is easy flat roof mounting frame systems
Brand:
LandpowerItem No.:
LP-FR-04Payment:
TT/LCColor:
Silver Black or CustomizedShipping port:
Xiamen ChinaLead Time:
7-15 days
This Solar Panel Flat Roof Solar Mounting System is designed for two rows height solar panel installations on flat concrete roof. It is easy flat roof mounting frame systems, come with triangle,mid clamp,end clamp and diagonal draw bar, no rail requested, few concrete block needed, easy and simple to install on roof. It is on competitive price per watt.
Technical Information:
Install Site: Flat Roof
Tilt Angle: 0-60 degree
Building Height: Up to 20 M
Mas Wind Speed:< 60m/S
Snow Load:<1.4KN/M2
Standard: AS/NZS 1170 and other international standard
Material: Aluminum 6005 T5 with A2 Stainless steel fasteners
Warranty: 12 years warranty and twenty-five year life span
It is easy mounting system,only few part like: triangle, end clamp,mid clamp and diagonal draw bar. below imamge showing the structure:
This flat roof mounting request no rail, come with diagonal draw bar on back of triangle,which make the whole mounting system stronger.

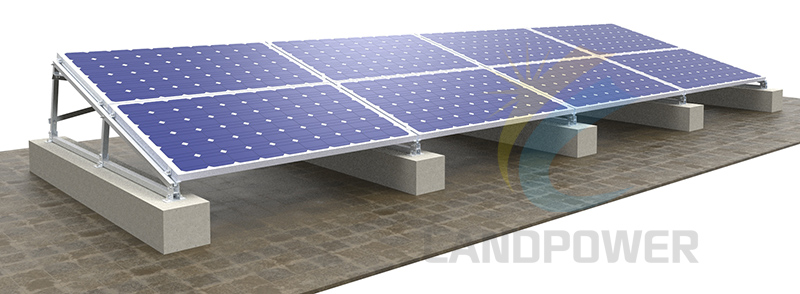

Front view of concrete flat roof solar panel mounting:
Project Reference of flat roof mounting:
We engineer and design various flat roof solar mounting solutions,please feel free to email us your projects details,we will design specific solutions for you. pls click here for the project reference: Solar Panel Flat Roof Mounting System
