Tilt Adjustable Ground Mounting

Seasonal Tilt Ground Mount allow tilt angle to be adjustable to your idea angle, it increase your panel power production.

  • Item No.:

    LP-TGM-01
  • Payment:

    TT/LC
  • Product origin:

    Xiamen China
  • Color:

    Silver Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

Seasonal Tilt Ground Mount allow tilt angle to be adjustable to your idea angle, it increase your panel power production, it adopt one steel pole structure, strong and easy to install on ground. It is cost-effective solution which can improve you power production,and increase your return on your investment.


Technical Information


Installation Site:  Open field

Module Type:  Framed or Frame-less

Module Arrangement:  Portrait or Landscape

Tilt Angle: Design on Request

Foundation: Concrete

Wind/Snow Load: Design on Request

Rail Material:    Anodized Aluminum and galvanized steel

Post Material:   Hot-dip galvanized steel

Soil Condition: Non-sandy

Design Standard: AS/NZS 1170,DIN 1055, IBC 2006

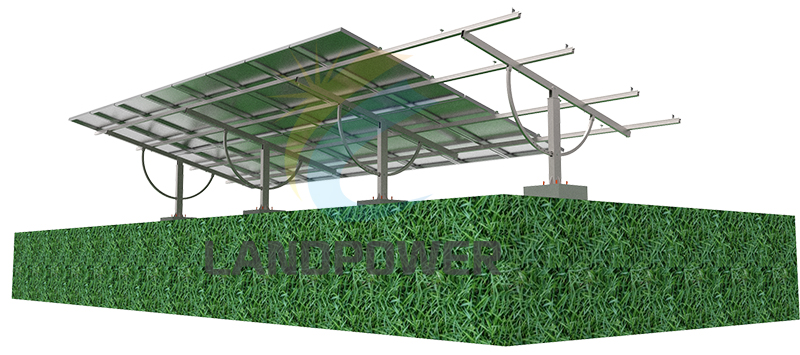

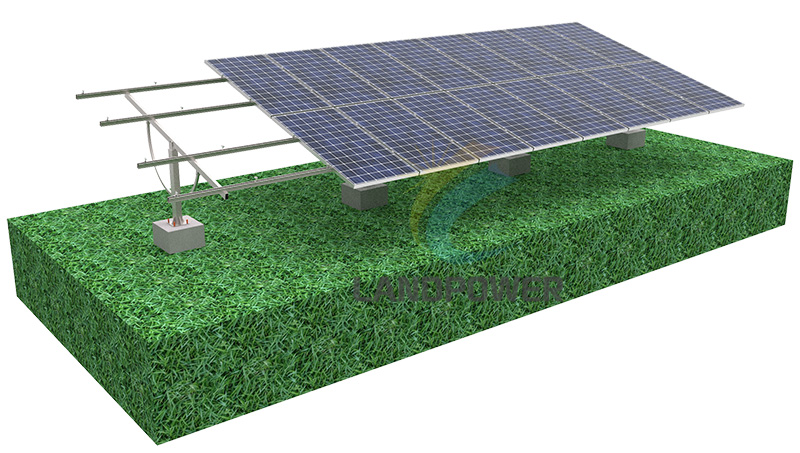

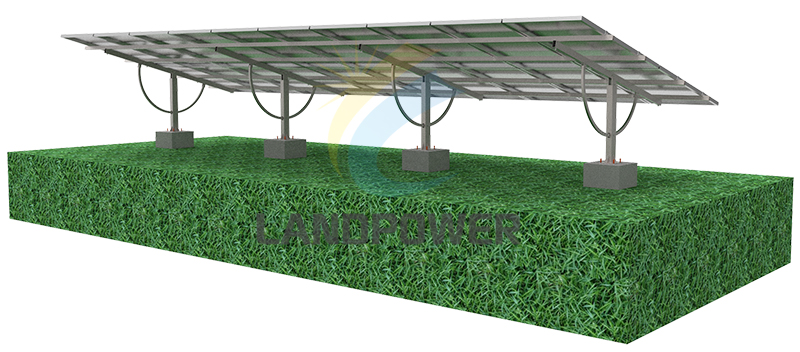

Tilt Angle Adjustable Ground Mount Overview:

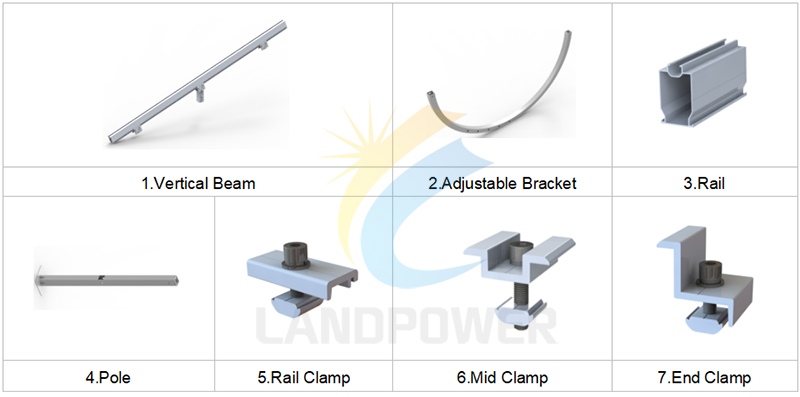

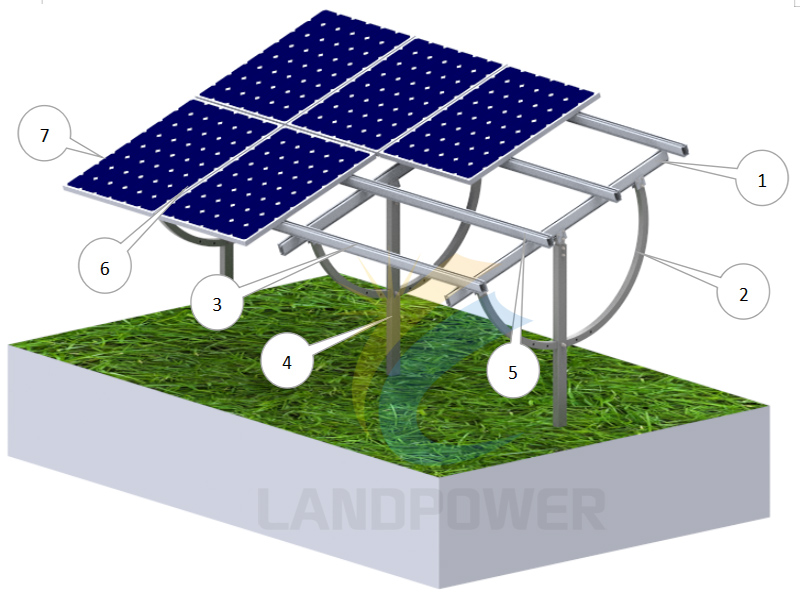

Main Mounting Components:

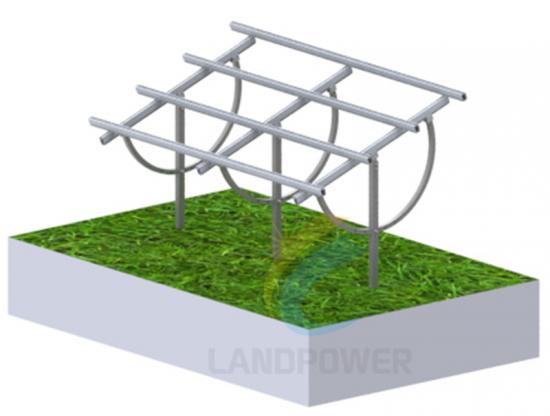

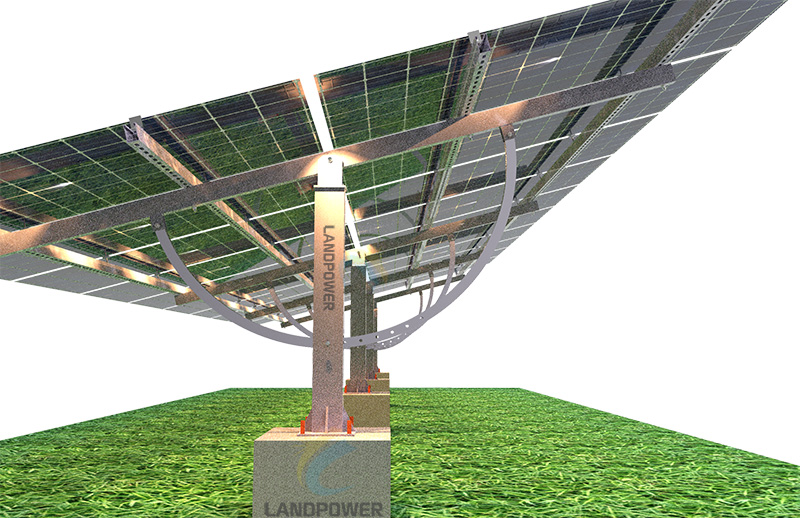

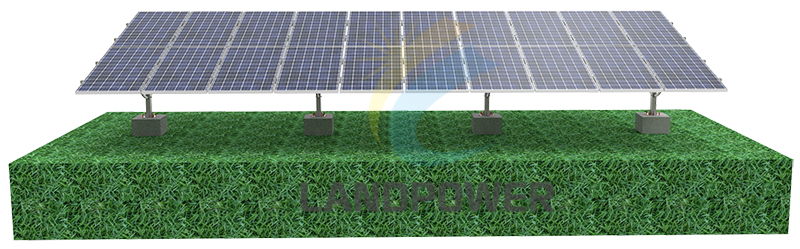

Installation Demo.:








We have manual tilt adjustable mounting for flat roof and ground mounting installations,please feel free to contact us for specific solutions
