Ballasted Solar Mounting System

This FLat Roof Solar Mounting is simple and easy structure mounting systems,coming with end clamp, mid clamp, triangle and ballasted plate or ballasted bar,it is fast and cost-effective systems. There are two way options to ballast, which using ballasted plate or ballasted bar.Anti-slip design make it fast and easy to place the panels on triangle,which firmly catch the panel on the structure. By adding wind deflectors,the system will can stand high wind. It is flexible flat roof mounting systems.

TECHNICAL INFORMATION

Install site ：Flat  Roof

Tilt Angle ：Flushed with the roof （10~60 deg）

Building Height：Up to 20 m

Max Wind Speed：<60m/s

Snow Load：<1.4KN/m2

Standard ：AS/NZS 1170 and other international Standard

Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty：12 years warranty and twenty- year service life

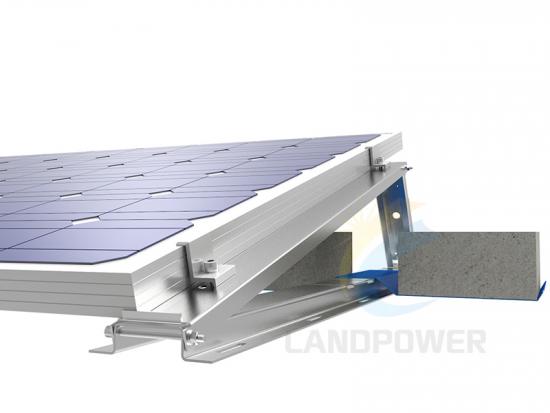

Ballast Flat Roof solar Mount Overview:

This flat roof mount also a non penetration mounting systems, by using ballast objects,no penetration request, the simply components like mid clamp,end clamp,triangle, ballasted plate or bar.

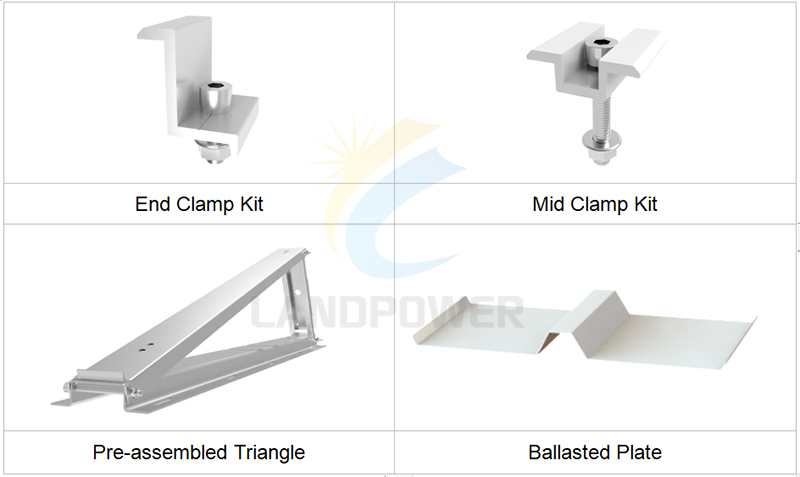

Flat Roof Main Components:

Anti- Slip Design:

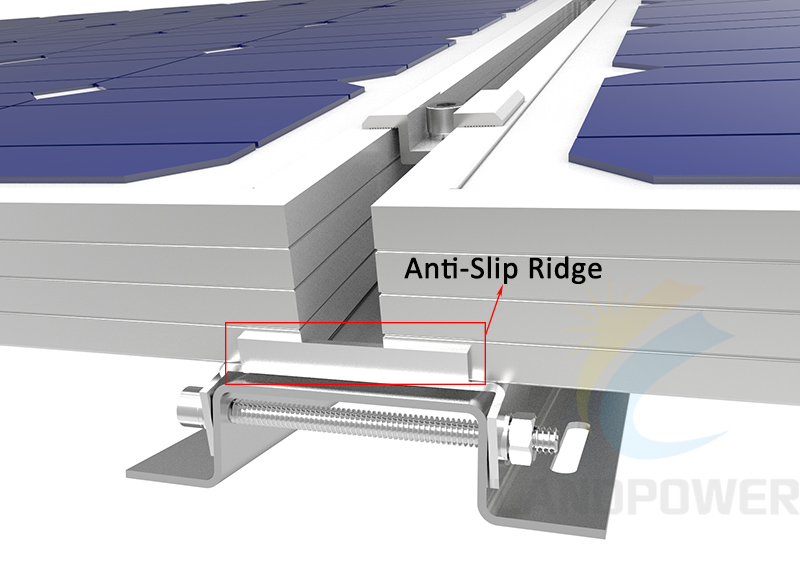

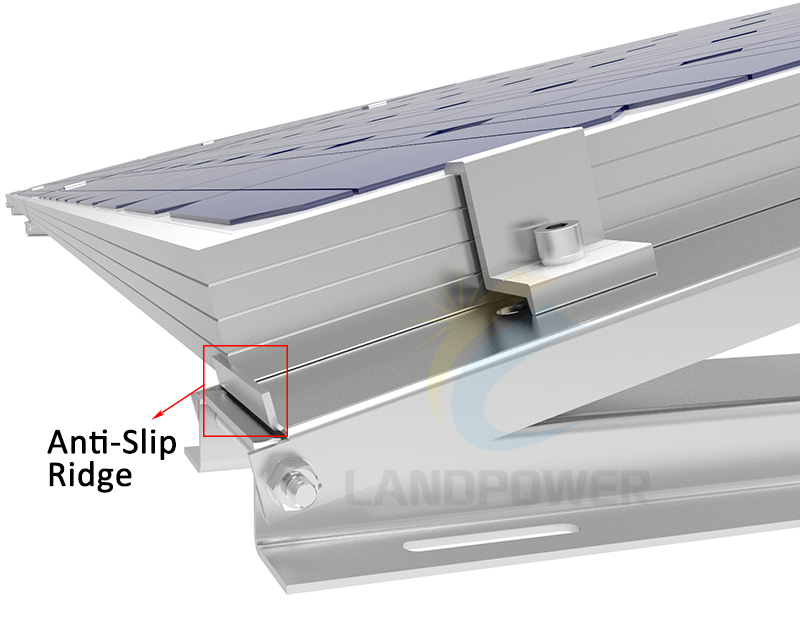

There are ridge on the front of triangle to stop solar panel slip down when putting panels on the triangles,make them easy to point the given spots.

There are two-way options to ballast the mounting systems:

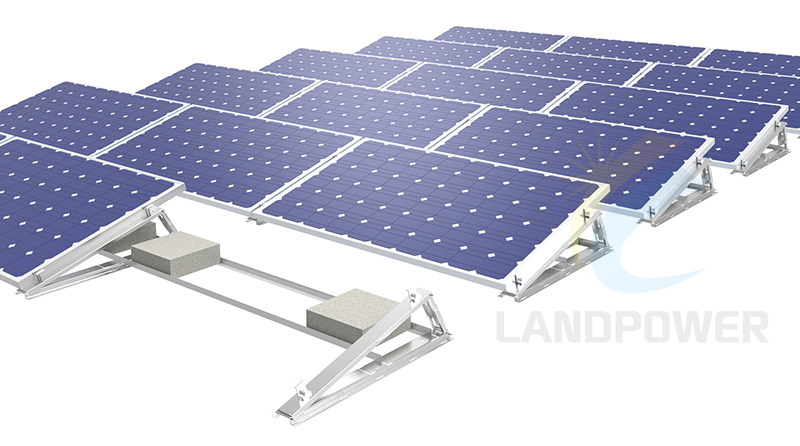

This design supply two ways to ballasted the triangles, using ballasted plates and ballasted bar, see below:

Ballasted Plates:

  Ballasted Bar:

We have various solutions for flat roof,both portrait and landscape, fixed and adjustable,for concrete roof and metal roof, feel free to contact us if you have any further question.
