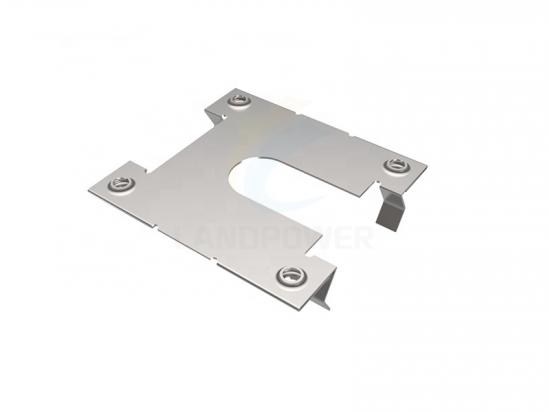

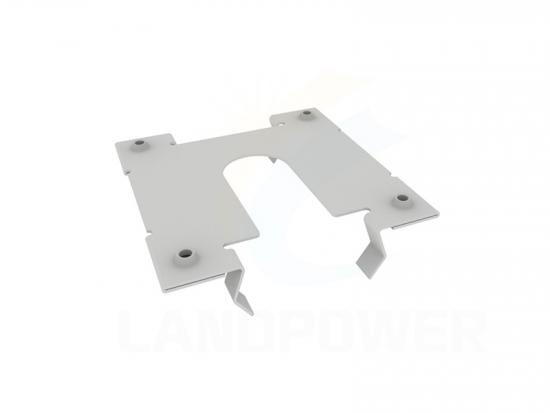

Solar Panel Earthing Clip

Solar Panel earthing clip is used to penetrate the anodized film both on mounting rail and mid clamp to create grounding path in solar mounting systems.

  • Brand:

    Landpower
  • Item No.:

    LP-GC-01
  • Payment:

    TT/LC
  • Product origin:

    Xiamen China
  • Color:

    Silver Black or Customized
  • Shipping port:

    Xiamen China
  • Lead Time:

    7-15 days
  • Product details

Solar Panel Earthing Clip(Grounding Clip) is design to penetrate the anodized films between solar mounting accessory and solar pv panel, which made the solar mounting conductive.There are ribs in four directions to penetrate anodized films to create grounding path through rail,which will make the solar system more save, it is necessary mounting component for solar pv system installation.



Technical Information:

Item Name:

Solar Mounting Earthing/Grounding Clip

Material:

Stainless Steel 304

Size:

30*32mm

Application:

Roof Rail, Ground Rail, Flat Roof Triangle etc.

Warranty:

12 years with 25 year lifespan

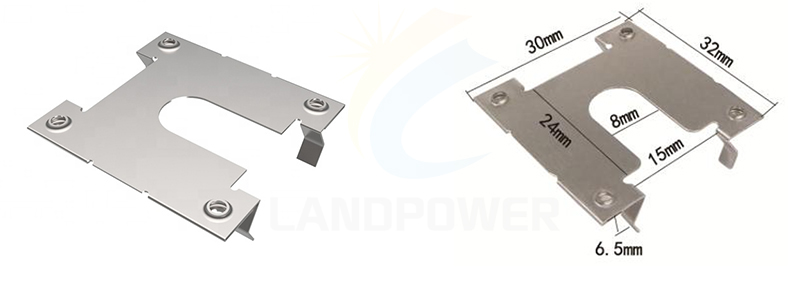

Solar Earthing Clip Dimension:

solar earthing clip

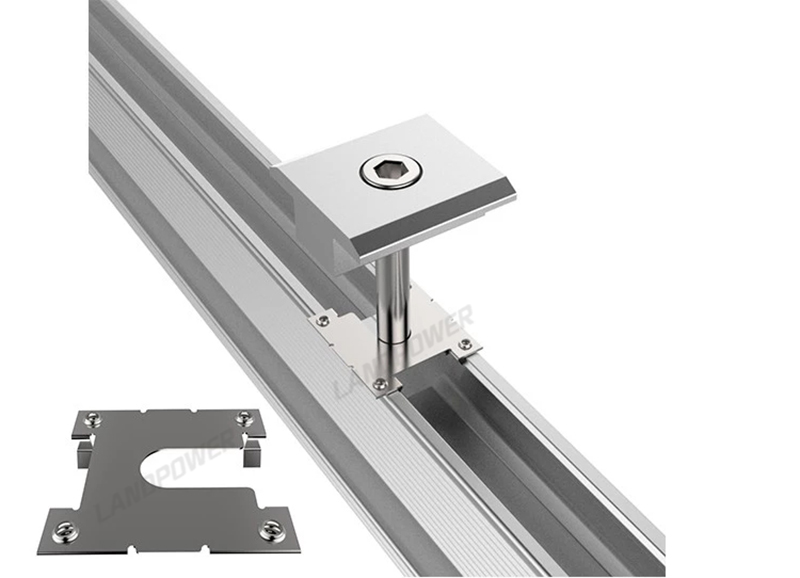

Solar Panel Earthing Clip Application:

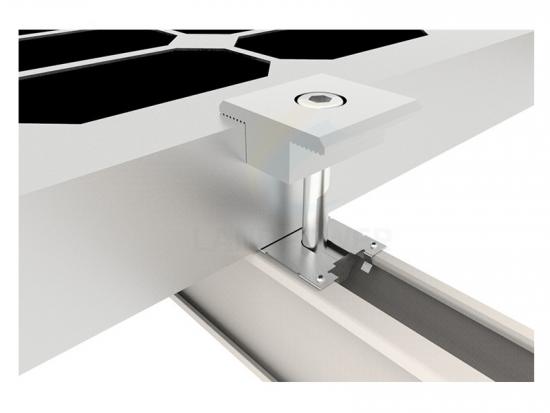

This Earthing Clip is used with mid clamp, it is forced to penetrate the anodized film  when tighten the bolt on the mid clamp. The electrical earthing part is created.

solar panel earthing clip

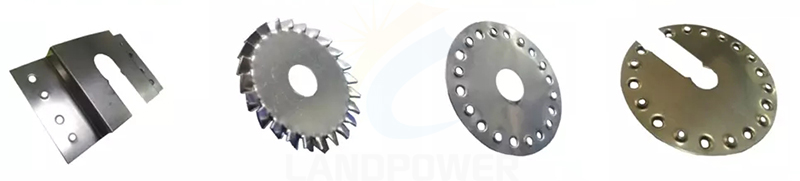

Various Earthing Clip Design:

We are keeping various solar mounting earthing clips for different usages,we also accept OEM service for different solar mounting rail.


ITEM NO.

DESCRIPTION


APPLICATION

LP-GC-01

Earthing Clip

 ( Stainless Steel 304)

 solar mounting earthing clip

Roof Rail,Ground Rail,Triangle Support, Roof Attachments and Mid Clamp etc.

LP-GC-02

 grounding clip

LP-GC-03

 universal grounding clip

LP-GC-04

 solar grounding clip

LP-GC-05

 roof mounting clip


solar panel earthing clip



We are engineering various earthing clips for solar mounting grounding system, normally it is used with Solar Earthing Lug, Bonding Jumper,cable clip and copper wire,please click there Solar Mounting Earthing Systems to learn more about mounting earthing systems.
